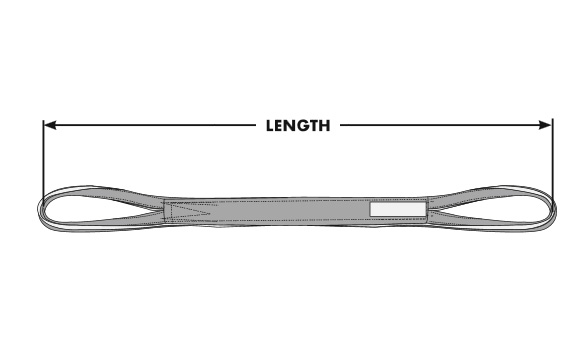

Type 4 (EE) - Twisted Eye slings are like Type 3 except the eyes are turned 90° to form a better choker hitch. The eyes of a Type 4 nest better on the crane hook.
One Ply Twisted Eye Flat Web Sling with Tuff Edge (TT) - TYPE IV
|
Type 4 Twisted Eye |
Vertical (lbs.) |
Choker (lbs.) |
Basket (lbs.) |
|---|---|---|---|
|
EE1-901PT |
1,600 |
1,250 |
3,200 |
|
EE1-902PT |
3,200 |
2,500 |
6,400 |
|
EE1-903PT |
4,800 |
3,800 |
9,600 |
|
EE1-904PT |
6,400 |
5,000 |
12,800 |
|
EE1-906PT |
9,600 |
7,700 |
19,200 |
|
EE1-908PT |
12,800 |
10,200 |
25,600 |
|
EE1-910PT |
16,000 |
12,800 |
32,000 |
|
EE1-912PT |
19,200 |
15,400 |
68,400 |
Two Ply Twisted Eye Flat Web Sling with Tuff Edge (TT) - TYPE IV
|
Type 4 Twisted Eye |
Vertical (lbs.) |
Choker (lbs.) |
Basket (lbs.) |
|---|---|---|---|
|
EE2-901PT |
3,200 |
25,900 |
6,400 |
|
EE2-902PT |
6,400 |
5,000 |
12,800 |
|
EE2-903PT |
8,600 |
6,900 |
17,200 |
|
EE2-904PT |
11,500 |
9,200 |
23,000 |
|
EE2-906PT |
16,300 |
13,000 |
32,600 |
|
EE2-908PT |
19,200 |
15,400 |
38,400 |
|
EE2-910PT |
22,400 |
17,900 |
44,800 |
|
EE2-912PT |
26,900 |
21,500 |
53,800 |
Three Ply Twisted Eye Flat Web Sling with Tuff Edge (TT) - TYPE IV
|
Type 4 Twisted Eye |
Vertical (lbs.) |
Choker (lbs.) |
Basket (lbs.) |
|---|---|---|---|
|
EE3-901PT |
4,100 |
3,300 |
8,200 |
|
EE3-902PT |
8,300 |
6,600 |
16,600 |
|
EE3-903PT |
12,500 |
10,000 |
25,000 |
|
EE3-904PT |
16,000 |
12,800 |
32,000 |
|
EE3-906PT |
26,000 |
18,400 |
46,000 |
|
EE3-908PT |
30,700 |
24,500 |
61,400 |
|
EE3-910PT |
36,800 |
29,400 |
73,600 |
|
EE3-912PT |
44,000 |
35,200 |
88,000 |
Four Ply Twisted Eye Flat Web Sling with Tuff Edge (TT) - TYPE IV
|
Type 4 Twisted Eye |
Vertical (lbs.) |
Choker (lbs.) |
Basket (lbs.) |
|---|---|---|---|
|
EE4-901PT |
5,000 |
4,000 |
10,000 |
|
EE4-902PT |
10,000 |
8,000 |
20,000 |
|
EE4-903PT |
14,900 |
11,900 |
29,800 |
|
EE4-904PT |
19,800 |
15,800 |
39,600 |
|
EE4-906PT |
22,800 |
23,800 |
59,600 |
|
EE4-908PT |
39,700 |
31,700 |
79,400 |
|
EE4-910PT |
49,600 |
39,600 |
99,200 |
|
EE4-912PT |
59,500 |
47,600 |
119,000 |
- Type 4 E&E web slings have twisted eyes that fit better in the bowl of a hook and work better in a choker hitch.
- Type 3 web slings are tapered at 3” and wider unless otherwise specified.
- Type 4 twisted eye slings are generally furnished unless otherwise specified.
- Minimum 5:1 design factor.
WARNING: Do not exceed rated capacities. The ratings must be reduced when lifting at angles of less than 90 degrees with the horizontal.
